美国赫高Hatco Toastmax系列 TM3-10H/TM-10H 中型链式多士炉 Conveyor Toasters-Hatco toastmax

Hatco TM3-10H 履带式烤面包机

美国著名餐饮设备制造商

USA Hatco Toast-Max Conveyor Toasters

Famous Food Service Equipmnet Manufacture

.....

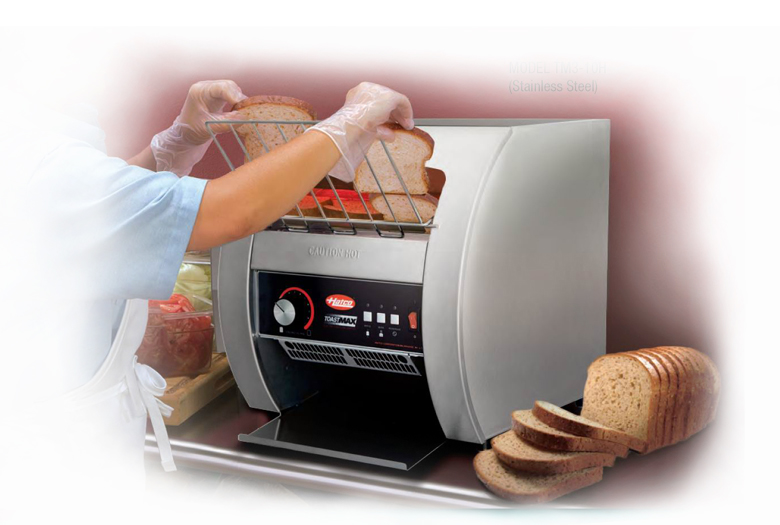

ToastMax TM3-10H 履带式烤面包机( 链式多士炉 ),能快速烘烤各种面包;

The Hatco Toast-Max conveyor toaster offers the flexibility and performance to perfectly toast bread and buns fast;

.....
通过调节履带的转速，调节面包的烘烤深浅，并且可即时调节；

Utilizing conveyor speed, not temperature, to determine toasting color, allows for instant adjustment of toasting time;

.....
每小时烘烤390-460片面包/汉堡包,

Up to 390-~460 slices per hour!

.....
Hatco 链式烤面包机，以其高品质广泛为著名星级酒店采用!

Designed to provide fast toasting of multiple bread products!

技术参数 Technical Data

型号
Model

品牌
Brand

产量
Output

开口高度
Output

功率
Power

规格(W*D*H)
Dimension(mm)

毛重
G.Weight

TM3-10H

Hatco

390~460 片/小时

宽245mm
高76mm

220V,
1.9KW~2.3KW

338*464*411 H

19 KG

性能特点 Features

每小时产量390~460片,适用于繁忙的商业需求；

390-460 slices per hour toast capacity for the busiest of venues;

入口高度76.2mm,适用于面包片和小圆面包等各种面包的快速烘烤；

76.2mm opening height for a wide range of toasting requirements;

ColorGuard 感测系统,精确调整温度,确保面包颜色均匀；

Color Guard system monitors the conveyor cavity temperature and instantly adjusts the conveyor speed to ensure toast uniformity especially in peak periods - to reduce wastage;

节能模式可以在非繁忙时段节省能量；

Power-save mode with indicator light saves energy during off-peak periods;

50hz/60hz 的共用磁浮轴承马达永无润滑之虑；

Permanently lubricated 50/60 Hz motor;

内置冷却风扇,防止外壳温度过高,以免烫伤；

Built-in fan provides cool surface temperature;

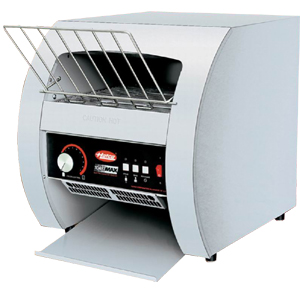

标准颜色:不锈钢色外壳
Stainless steel finish

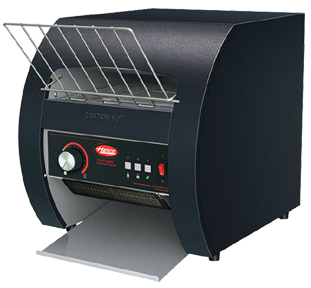

可选颜色:黑色外壳
Optional: Black finish

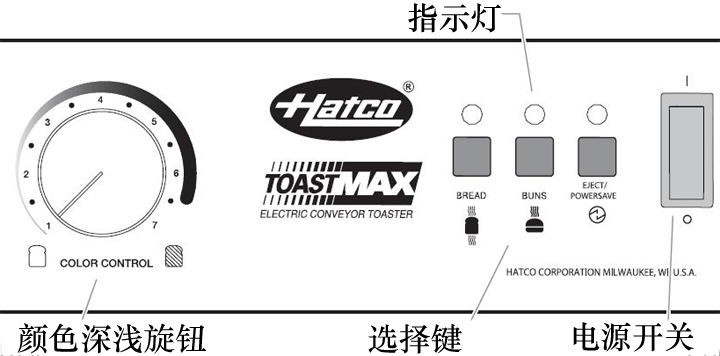

操作控制面板简介 Control Panel

适用场所 Locations

..广泛应用于著名的快餐连锁店、自助餐、便利店等场所;

Available for famous fast food chain store,buffet,& Convenient Stores;

操作说明 Operation Manual

TM3-10H 链式多士炉操作使用说明书- 英文版下载 (.PDF格式)

TM3-10H Conveyor Toaster Operation Manual-^Download

		Hatco TM-10H 履带式烤面包机	美国著名餐饮设备制造商
		USA Hatco Toast-Max Conveyor Toasters	Famous Food Service Equipmnet Manufacture

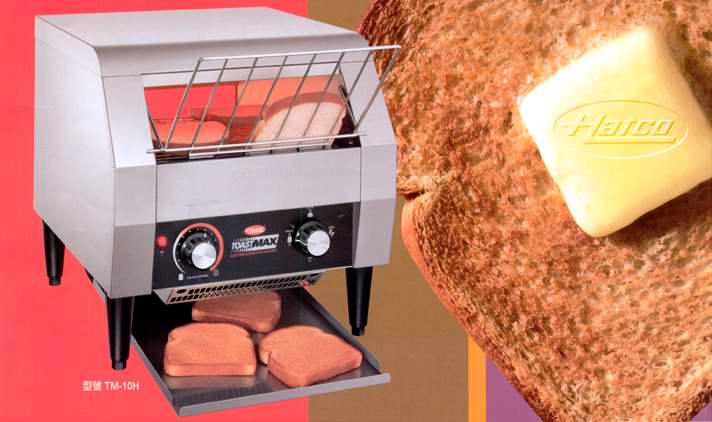

.....	ToastMax TM-10H 经济履带式烤面包机( 链式多士炉 ),能快速烘烤各种面包;
	The Hatco Toast-Max economy conveyor toaster offers the flexibility and performance to perfectly toast bread and buns fast;


.....	通过调节履带的转速，调节面包的烘烤深浅，并且可即时调节；
	Utilizing conveyor speed, not temperature, to determine toasting color, allows for instant adjustment of toasting time;


.....	最快每小时烘烤300-400片面包/汉堡包,
	Up to 300 slices per hour!


.....	Hatco 链式烤面包机，以其高品质广泛为著名星级酒店采用!
	Designed to provide fast toasting of multiple bread products!

技术参数 Technical Data

型号 Model	品牌 Brand	产地 Origin	产量 Output	功率 Power	规格(WDH) Dimension(mm)
TM-10H	Hatco	USA,美国	300 pieces/hour	220V,2300W	368416387 H
TM-5H	Hatco	USA,美国	180 pieces/hour	220V,1595W	289416387 H

性能特点 Features

	4 个烘烤模式:面包/汉堡/节能装置/关挚；
	4-position toast selector switch: off / toast / buns / stand-by mode;


	有工作指示灯,显示此机正在工作；
	Pilot light that signals unit is in operation;


	独特耐用的CALROD 金属红外线发热元件；
	Long lasting serpentine metal sheathed heating elements ;


	高输入口有8.9cm,适用于各种面包的快速烘烤；
	89 mm (3.5") clearance to accommodatehigh profile bread products;


	50hz/60hz 的共用磁浮轴承马达永无润滑之虑；
	Permanently lubricated 50/60 Hz motor;


	配备4"(10.2CM)自调式脚架；
	102 mm (4") adjustable legs;

适用场所 Locations

	..广泛应用于著名的快餐连锁店、自助餐、便利店等场所;
	Available for famous fast food chain store,buffet,& Convenient Stores;

操作说明 Operation Manual
	TM-10H 链式多士炉操作使用说明书- 英文版下载 (.PDF格式)

	TM-10H Conveyor Toaster Operation Manual-^Download
