卧式冷冻柜系列 Glass Doors Refrigerator Showcase

本页目录　　■ 顶开门.折叠门 ■ 玻璃移门.弧形门 ■ 超低温冷柜

卧式冷冻柜系列 ···顶开门.折叠门.

Chest Freezer Series...Top Opening & Foldingdoor

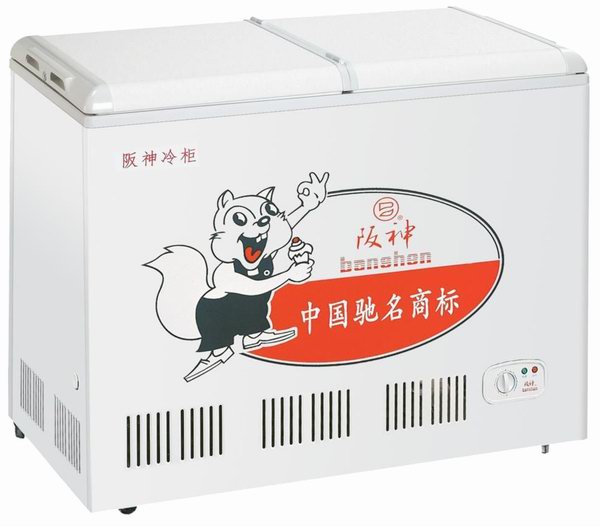

单顶开门冷柜（冷冻.冷藏可转换） Single top opening door Chest Freezer/Refrigerator Series	双顶开门冷柜（冷冻.冷藏可转换） Double top opening door Chest Freezer/Refrigerator Series	折叠门冷柜（冷冻.冷藏可转换） Double folding Door Chest Freezer/Refrigerator Series

单顶开门冷柜 Single top opening door

型号 Model	有效容积(L) Capacity	产品尺寸(mm) Size(WDH)	包装尺寸(mm) Packing size(WDH)	输入功率(W) Input Power	净重(KG) Net Weight	40'HQ(PCS) Container	备注 Remark
BD/C-100	100	625528835	690520895	112	38	203	CCC
BD/C-146	146	816528835	880520895	112	45	156	CCC
BD/C-200	200	835680850	895700890	163	62	127	CCC
BD/C-300	300	1120680850	1170700890	182	75	100	CCC
BD/C-118	118	756535898	830569970	107	42	114	CCC

性能特点 Features

■	线条流畅，欧式风格；	Streamline in appearance,Europe style;

■	可冷冻冷藏，一机二用；	Freezer or refrigerator,you choice;

■	加厚发泡层，节省电能；	Thickened foaming layer,energy saving;

■	万向脚轮，开启方便；	Easy to move with castor on the bottom;

■	平衡铰链，开启方便；	Balancing hinge makes the door easy to open;

■	门体加锁，安全可靠；	It is safe with the lock in door;

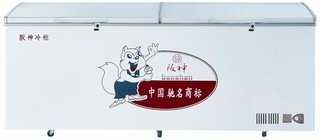

双顶开门冷柜 Double top opening door

型号 Model	有效容积(L) Capacity	产品尺寸(mm) Size(WDH)	包装尺寸(mm) Packing size(WDH)	输入功率(W) Input Power	净重(KG) Net Weight	40'HQ(PCS) Container	备注 Remark
BD/C-388	388	1316720906	13857451030	206	78	50	CCC
BD/C-468	468	1536720906	16067451030	246	90	44	CCC
BD/C-568	568	1806720906	18757451030	296	108	38	CCC
BD/C-760	760	2206765926	22757651030	412	150	28	CCC

性能特点 Features

■	线条流畅，欧式风格；	Streamline in appearance,Europe style;

■	可冷冻冷藏，一机二用；	Freezer or refrigerator,you choice;

■	加厚发泡层，节省电能；	Thickened foaming layer,energy saving;

■	万向脚轮，开启方便；	Easy to move with castor on the bottom;

■	平衡铰链，开启方便；	Balancing hinge makes the door easy to open;

■	门体加锁，安全可靠；	It is safe with the lock in door;

性能特点 Features

■	线条流畅，欧式风格；	Streamline in appearance,Europe style;

■	可冷冻冷藏，一机二用；	Freezer or refrigerator,you choice;

■	加厚发泡层，节省电能；	Thickened foaming layer,energy saving;

■	万向脚轮，开启方便；	Easy to move with castor on the bottom;

■	门体加锁，安全可靠；	It is safe with the lock in door;

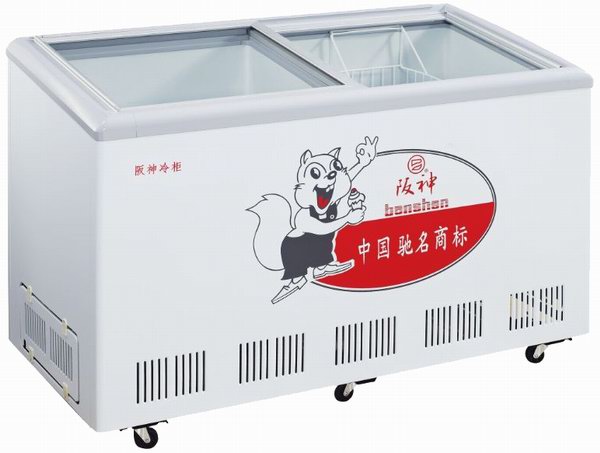

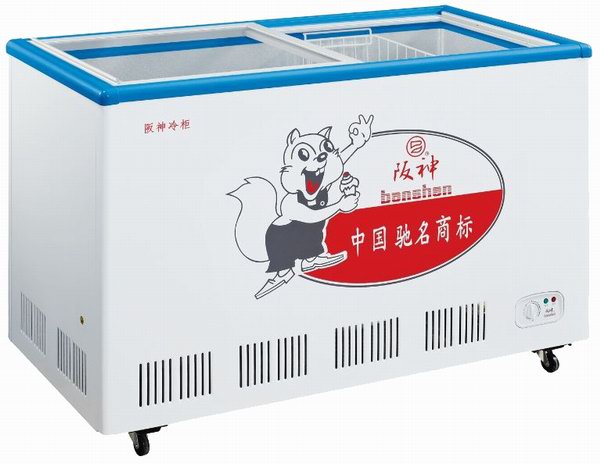

冷冻柜系列···平面玻璃门.圆弧面玻璃门

Chest Freezer Series...Sliding Door & Curved Door

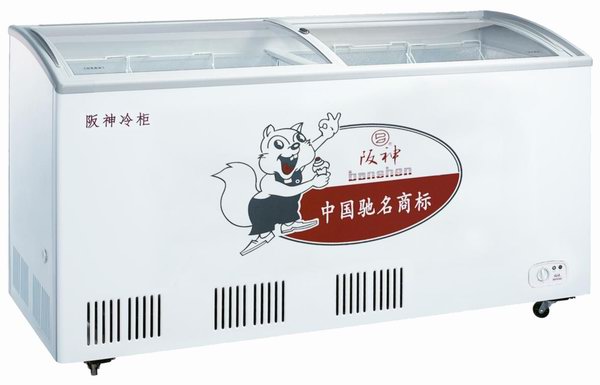

平面玻璃门冷柜（冷冻.冷藏可转换） Glass Sliding Door Chest Freezer/Refrigerator Series	圆弧面玻璃门冷柜（冷冻.冷藏可转换） Curved Glass Door Chest Freezer/Refrigerator Series

性能特点 Features

■	线条流畅，欧式风格；	Streamline in appearance,Europe style;

■	可冷冻冷藏，一机二用；	Freezer or refrigerator,you choice;

■	推拉式玻璃移门，展示功能强；	Sliding glass door,display food clearly;

■	万向脚轮，开启方便；	Easy to move with castor on the bottom;

■	门体加锁，安全可靠；	It is safe with the lock in door;

性能特点 Features

■	线条流畅，欧式风格；	Streamline in appearance,Europe style;

■	可冷冻冷藏，一机二用；	Freezer or refrigerator,you choice;

■	热反射玻璃移门，隔热保温效果好；	Heat reflecting cured glass door,good effect of heat insulation;

■	万向脚轮，开启方便；	Easy to move with castor on the bottom;

■	加厚发泡层，节省电能；	Thickened foaming layer,energy saving;

超低温冰箱 Freezer(-60℃)
