首页>清洁设备专栏>商用龙头  本页目录  T&S洗地龙头 Pre-rinse洗地龙头



Equip系列 开放式.洗地龙头...美国 T&S 商用洁具
Open Retractable Hose Reels..USA T&S




开放式.洗地龙头...美国 T&S 商用洁具
Open Brass Retractable Hose Reels..USA T&S

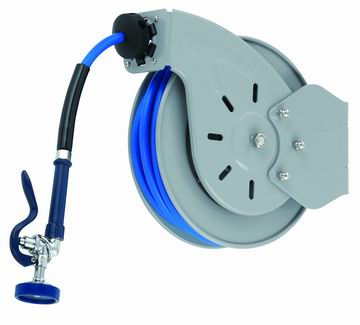

Model:B-7232-01 洗地龙头(开放式.环氧涂层)
Model:B-7132-01 洗地龙头(开放式.不锈钢)

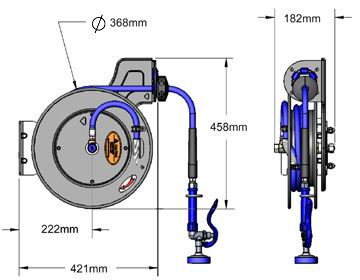

尺寸示意图
Dimensions

产品描述 Description
.品名
Description
洗地龙头(开放式.环氧涂层)
Retractable Hose Reels(Open.Epoxy Coated)
洗地龙头(开放式.不锈钢)
Retractable Hose Reels(Open.S/S)
.型号
Model
B-7232-01 B-7132-01
.品牌
Brand
美国 T&S
USA .
T&S
美国 T&S
USA .
T&S
主要参数 Technicals
B-7232-01 旧的型号为:B-1403或B-1471;
B-7232-01 Old Model:B-1403/B-1471;
B-7132-01 旧的型号为:B-1535;
B-7132-01 Old Model:B-1535;

软管长度:10.7米 开发式
Hose Rell Length:35',Open Type;
软管长度:10.7米 开发式
Hose Rell Length:35',Open Type;

流量:5.37升/分钟
Rlow Rate: 1.42 GPM;
流量:5.37升/分钟
Rlow Rate: 1.42 GPM;

性能特点 Features
喉管自动回卷装置(棘轮系统,防锁死,棘轮保持放松)
Anti-lock ratchet design-ratchet always release,enabling hose to retact;


T&S蓝色软管,可承受120°C的高温以及300PSI高压;
T&S Blue non-marring hose rated up to 120°C and 300PSI;


可安装于墙壁、天花板或台柜下;
Muti-fit bracket for wall,ceiling or under counter mounting;


配置喉管止动器,可调节;
Adjustable hose bumper;

安装说明 Installation Manual
  开放式.洗地龙头 安装说明- 英文版下载
  Open type Hose Reels Installation Manual-English Version
适用场所 Locations
  ..常用于大型厨房、大厅、酒吧、西餐馆等场所;
  ..Suitalbe for kitchen、lobby、bar ,coffee bar , restaurant etc;


封闭式.洗地龙头...美国 T&S 商用洁具
Encloseed Brass Retractable Hose Reels..USA T&S

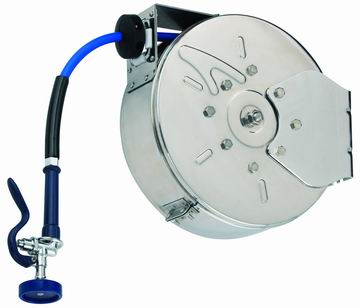

Model:B-7222-C01 洗地龙头(封闭式.环氧涂层)
Model:B-7122-C01 洗地龙头(封闭式.不锈钢)

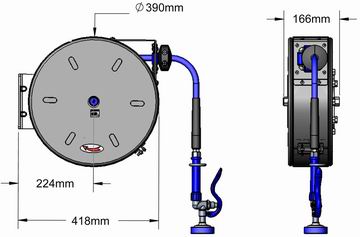

尺寸示意图
Dimensions

产品描述 Description
.品名
Description
洗地龙头(封闭式.环氧涂层)
Retractable Hose Reels(Enclosed.Epoxy Coated)
洗地龙头(封闭式.不锈钢)
Retractable Hose Reels(
Enclosed.S/S)
.型号
Model
B-7222-C01 B-7122-C01
.品牌
Brand
美国 T&S
USA .
T&S
美国 T&S
USA .
T&S
主要参数 Technicals
B-7222-C01 旧的型号为:B-1400;
B-7222-C01 Old Model:B-1400;
B-7122-01 旧的型号为:B-1530-C;
B-7122-01 Old Model:B-1530-C;

软管长度:9.14米 封闭式
Hose Rell Length:30',Enclosed Type;
软管长度:9.14米 封闭式
Hose Rell Length:30',Enclosed Type;

流量:5.37升/分钟
Rlow Rate: 1.42 GPM;
流量:5.37升/分钟
Rlow Rate: 1.42 GPM;

性能特点 Features
喉管自动回卷装置(棘轮系统,防锁死,棘轮保持放松)
Anti-lock ratchet design-ratchet always release,enabling hose to retact;


T&S蓝色软管,可承受120°C的高温以及300PSI高压;
T&S Blue non-marring hose rated up to 120°C and 300PSI;


可安装于墙壁、天花板或台柜下;
Muti-fit bracket for wall,ceiling or under counter mounting;


配置喉管止动器,可调节;
Adjustable hose bumper;

安装说明 Installation Manual
  封闭式.洗地龙头 安装说明- 英文版下载
  Enclosed type Hose Reels Installation Manual-English Version
适用场所 Locations
  ..常用于大型厨房、大厅、酒吧、西餐馆等场所;
  ..Suitalbe for kitchen、lobby、bar ,coffee bar , restaurant etc;




开放式.冲地龙头...Pre-rinse 商用洁具
Pre-rinse Open Brass Retractable Hose Reels

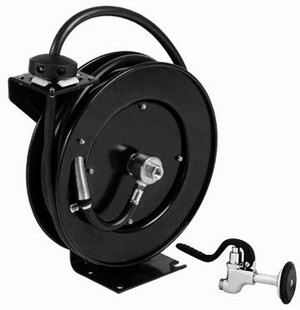

Model:M98E-HRS11
11米 冲地龙头(开放式.花洒头)
11m Open Hose Reel(Spray Valve)
产品描述 Description

品名:11米开放式洗地龙头联花洒头;
  Description:11M Oen hose reel with Spray;

品牌:厨镖
  Brand:Chubiao;

型号:M98E-HRS11
  Model:M98E-HRS11;

喉管长度:11m,耐压:300PSI,耐温:80°C
  Hose length:11M,300 PSI Max and 80°C temperature;

导向臂可4个方向定位
  Guide arm:4 position orientation;

配置喉管止动器,可调节
  Adustable hose stop;

本型号配置花洒喷头M98E-1SV
  Include Spray valve:M98E-1SV;

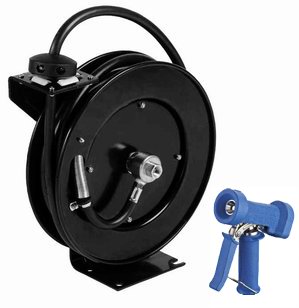

Model:M98E-HRW11
11米 冲地龙头(开放式.水枪头)
11m Open Hose Reel(Water Gun )
产品描述 Description

品名:11米开放式洗地龙头连水枪头;
  Description:11M Oen hose reel with Water Gun;

品牌:厨镖
  Brand:Chubiao;

型号:M98E-HRW11
  Model:M98E-HRW11;

喉管长度:11m,耐压:300PSI,耐温:80°C
  Hose length:11M,300 PSI Max and 80°C temperature;

导向臂可4个方向定位
  Guide arm:4 position orientation;

配置喉管止动器,可调节
  Adustable hose stop;

本型号配置水枪头XDF5100
  Include Water gun:XDF5100;



Model:M98E-HRS15
15米 冲地龙头(开放式.花洒头)
15M Open Hose Reel(Spray Valve)
产品描述 Description

品名:15米开放式洗地龙头联花洒头;
  Description:15M Oen hose reel with Spray;

品牌:厨镖
  Brand:Chubiao;

型号:M98E-HRS15
  Model:M98E-HRS15;

喉管长度:15m,耐压:300PSI,耐温:80°C
  Hose length:15M,300 PSI Max and 80°C temperature;

导向臂可4个方向定位
  Guide arm:4 position orientation;

配置喉管止动器,可调节
  Adustable hose stop;

本型号配置花洒喷头M98E-1SV
  Include Spray valve:M98E-1SV;

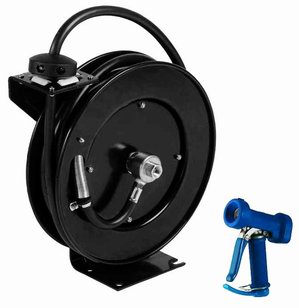

Model:M98E-HRW15
15米 冲地龙头(开放式.水枪头)
15m Open Hose Reel(Water Gun )
产品描述 Description

品名:15米开放式洗地龙头连水枪头;
  Description:15M Oen hose reel with Water Gun;

品牌:厨镖
  Brand:Chubiao;

型号:M98E-HRW15
  Model:M98E-HRW15;

喉管长度:15m,耐压:300PSI,耐温:80°C
  Hose length:15M,300 PSI Max and 80°C temperature;

导向臂可4个方向定位
  Guide arm:4 position orientation;

配置喉管止动器,可调节
  Adustable hose stop;

本型号配置水枪头XDF5100
  Include Water gun:XDF5100;




Model:XDF5188(11M) 冲地龙头(开放式.花洒头)
Model:XDF5188(11M) Open Hose Reel(Spray Valve)

产品描述 Description

开放式冲地龙头,外表静电喷塑;
  Open reel with epoxy coated steel finish;

配有长度11米的高压软管
  11m Of heavy-duty blue hose 7/8"-20UNEF female I.D;

喉管自动回
  Ratcheting system holds the length of hose unitil a slight tug,retracts automatically

进水口3/8”NPT内螺纹;
  3/8"NPT female inlet ;

配置喉管止动器,可调节
  Adjustable hose bumper;

可安装于墙壁、天花板或台柜下
  Multi-fit bracket for wall,ceiling orunder countewr mounting ;




Model:XDF5178(7.5M) 冲地龙头(开放式.花洒头)
Model:XDF5178(7.5M) Open Hose Reel(Spray Valve)

产品描述 Description

开放式冲地龙头,外表静电喷塑;
  Open reel with epoxy coated steel finish;

配有长度7.5米的高压软管
  7.5m Of heavy-duty blue hose 7/8"-20UNEF female I.D;

喉管自动回
  Ratcheting system holds the length of hose unitil a slight tug,retracts automatically

进水口3/8”NPT内螺纹;
  3/8"NPT female inlet ;

配置喉管止动器,可调节
  Adjustable hose bumper;

可安装于墙壁、天花板或台柜下
  Multi-fit bracket for wall,ceiling orunder countewr mounting ;



Model:XDF5168(15M) 冲地龙头(开放式.花洒头)
Model:XDF5168(15M) Open Hose Reel(Spray Valve)

产品描述 Description

开放式冲地龙头,外表静电喷塑;
  Open reel with epoxy coated steel finish;

配有长度15米的高压软管
  15m Of heavy-duty blue hose 7/8"-20UNEF female I.D;

喉管自动回
  Ratcheting system holds the length of hose unitil a slight tug,retracts automatically

进水口3/8”NPT内螺纹;
  3/8"NPT female inlet ;

配置喉管止动器,可调节
  Adjustable hose bumper;

可安装于墙壁、天花板或台柜下
  Multi-fit bracket for wall,ceiling orunder countewr mounting ;



Model:XDF5158(20M) 冲地龙头(开放式.花洒头)
Model:XDF5158(20M) Open Hose Reel(Spray Valve)

产品描述 Description

开放式冲地龙头,外表静电喷塑;
  Open reel with epoxy coated steel finish;

配有长度20米的高压软管
  20m Of heavy-duty blue hose 7/8"-20UNEF female I.D;

喉管自动回
  Ratcheting system holds the length of hose unitil a slight tug,retracts automatically

进水口3/8”NPT内螺纹;
  3/8"NPT female inlet ;

配置喉管止动器,可调节
  Adjustable hose bumper;

可安装于墙壁、天花板或台柜下
  Multi-fit bracket for wall,ceiling orunder countewr mounting ;



封闭式.冲地龙头...Pre-rinse 商用洁具
Pre-rinse Enclosed Type Brass Retractable Hose Reels


Model:XDF5198(9M) 冲地龙头(封闭式.花洒头)
Model:XDF5198(9M) Enclosed Hose Reel(Spray Valve)

产品描述 Description

封闭式冲地龙头,外表静电喷塑;
  Enclosed type reel with epoxy coated steel finish;

配有长度9米的高压软管
  9m Of heavy-duty blue hose 7/8"-20UNEF female I.D;

喉管自动回
  Ratcheting system holds the length of hose unitil a slight tug,retracts automatically

进水口3/8”NPT内螺纹;
  3/8"NPT female inlet ;

配置喉管止动器,可调节
  Adjustable hose bumper;

可安装于墙壁、天花板或台柜下
  Multi-fit bracket for wall,ceiling orunder countewr mounting ;



Model:XDF5198W(9M) 冲地龙头(封闭式.水枪头)
Model:XDF5198W(9M) Enclosed Hose Reel.Water gun

产品描述 Description

封闭式冲地龙头,外表静电喷塑;
  Enclosed type reel with epoxy coated steel finish;

配有长度9米的高压软管,以及前扳机水枪头;
  9m Of heavy-duty blue hose and front trigger water gun;

喉管自动回
  Ratcheting system holds the length of hose unitil a slight tug,retracts automatically

进水口3/8”NPT内螺纹;
  3/8"NPT female inlet ;

配置喉管止动器,可调节
  Adjustable hose bumper;

可安装于墙壁、天花板或台柜下
  Multi-fit bracket for wall,ceiling orunder countewr mounting ;
