曲柄去水器(摇柄去水龙头)...美国 T&S 商用洁具 Twist Waste Valve with Overflow Assembly ..USA T&S

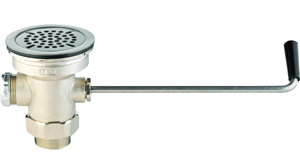

Model：B-3940 摇柄去水 Waste Drain Valve, Twist Handle, 3" x 2" & 1-1/2" Adapter 产品描述 Description   曲柄去水器用途:不再需要用手去拔水塞,避免接触脏水和水中不明异物；   Avoid contact with dirty water and sharp, unseen objects by allowing you to drain water and stop water from draining out of a sink without reaching your arm into the water!;     手柄右转，即去水；左转，即关闭；   Simply twist the handle's heat-resistant plastic grip to the right to open the drain, or to the left to close the drain;     配有排水接头；采用标准的 1-1/2”或2” 出水接头；   Drain adapter;Valve bodies come standard with 1-1/2"or 2” outlet;     安装于 3” (76 mm) 的水槽开孔；   3” (76 mm) sink opening applications;     重量:1.81 公斤；   Weight: 4.20 lb (1.81 kg);

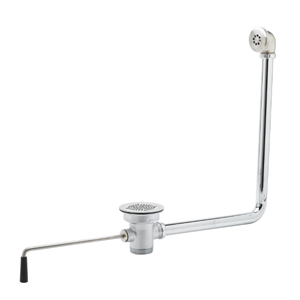

Model：B-3940-01 摇柄去水+溢流管 Waste Twist, 3" x 2" w/ Overflow, NPT Adapter 产品描述 Description   曲柄去水器用途:不再需要用手去拔水塞,避免接触脏水和水中不明异物；   Avoid contact with dirty water and sharp, unseen objects by allowing you to drain water and stop water from draining out of a sink without reaching your arm into the water!;     手柄右转，即去水；左转，即关闭；   Simply twist the handle's heat-resistant plastic grip to the right to open the drain, or to the left to close the drain;     配有溢流管；   An overflow assembly prevents unsanitary and dangerous overflow even if the drain is closed ;     安装于 3” (76 mm) 的水槽开孔；采用标准的 1-1/2”或2” 出水接头；   3” (76 mm) sink opening applications;     重量:3.18 公斤；   Weight:7.70 lb (3.18 kg);

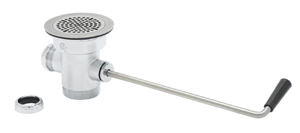

Model：B-3942 摇柄去水 Waste Drain Valve, Twist Handle, 3" x 2" 产品描述 Description   曲柄去水器用途:不再需要用手去拔水塞,避免接触脏水和水中不明异物；   Avoid contact with dirty water and sharp, unseen objects by allowing you to drain water and stop water from draining out of a sink without reaching your arm into the water!;     手柄右转，即去水；左转，即关闭；   Simply twist the handle's heat-resistant plastic grip to the right to open the drain, or to the left to close the drain;     配有排水接头；采用标准的2”出水接头；   Drain adapter;Valve bodies come standard with 2”outlet;     安装于 3” (76 mm) 的水槽开孔；   3” (76 mm) sink opening applications;     重量:2.27 公斤；   Weight: 5.00 lb (2.27 kg);

Model：B-3942-01 摇柄去水+溢流管 Waste Twist, 3" x 2" w/ Overflow 产品描述 Description   曲柄去水器用途:不再需要用手去拔水塞,避免接触脏水和水中不明异物；   Avoid contact with dirty water and sharp, unseen objects by allowing you to drain water and stop water from draining out of a sink without reaching your arm into the water!;     手柄右转，即去水；左转，即关闭；   Simply twist the handle's heat-resistant plastic grip to the right to open the drain, or to the left to close the drain;     配有溢流管；   An overflow assembly prevents unsanitary and dangerous overflow even if the drain is closed ;     安装于 3” (76 mm) 的水槽开孔；采用标准的2”出水接头；   3” (76 mm) sink opening applications;     重量:3.18 公斤；   Weight:7.70 lb (3.18 kg);

Model：B-3950 摇柄去水 Waste Drain Valve, Twist Handle, 3-1/2" x 2" & 1-1/2" Adapter 产品描述 Description   曲柄去水器用途:不再需要用手去拔水塞,避免接触脏水和水中不明异物；   Avoid contact with dirty water and sharp, unseen objects by allowing you to drain water and stop water from draining out of a sink without reaching your arm into the water!;     手柄右转，即去水；左转，即关闭；   Simply twist the handle's heat-resistant plastic grip to the right to open the drain, or to the left to close the drain;     配有排水接头；采用标准的1-1/2"或 2”出水接头；   Drain adapter;Valve bodies come standard with 1-1/2" or 2”outlet;     安装于 3-1/2” (89 mm) 的水槽开孔；   3-1/2” (89 mm) sink opening applications;     重量:1.81 公斤；   Weight: 4.54 lb (1.81 kg);

Model：B-3950-01 摇柄去水+溢流管 Waste Twist, 3-1/2" x 2" w/ Overflow, NPT Adapter 产品描述 Description   曲柄去水器用途:不再需要用手去拔水塞,避免接触脏水和水中不明异物；   Avoid contact with dirty water and sharp, unseen objects by allowing you to drain water and stop water from draining out of a sink without reaching your arm into the water!;     手柄右转，即去水；左转，即关闭；   Simply twist the handle's heat-resistant plastic grip to the right to open the drain, or to the left to close the drain;     配有溢流管；   An overflow assembly prevents unsanitary and dangerous overflow even if the drain is closed ;     落水开孔尺寸：3.5＂(89 mm)，溢流管尺寸：1.5＂ or 2；   3 1/2 Sink Opening,2" NPT Male Outlet,1.5"NPT adapater & overflow tube;;     重量:3.18 公斤；   Weight:7.70 lb (3.18 kg);

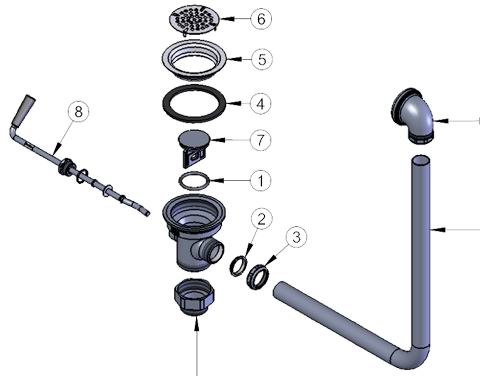

曲柄排水阀装配示意图 Spare parts of Waste Valve

安装说明 Installation Manual
	曲柄去水阀+溢流管 安装说明- 英文版下载
	Twist Waste Valve with Overflow Assembly Sepcification Sheet l-English Version

摇柄去水阀(曲柄去水器)...Pre-rinse 商用洁具 Twist Waste Valve with Overflow Assembly..Prerinse

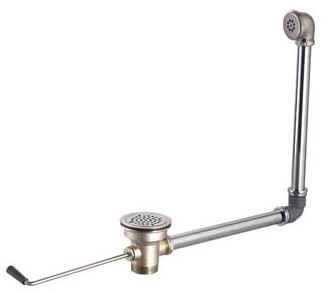

Model：WV3170-FEP-B 摇柄去水阀+溢流管(全铜) Twist Waste Valve with Overflow Assembly 产品描述 Description   曲柄去水器用途:不再需要用手去拔水塞,避免接触脏水和水中不明异物；   Avoid contact with dirty water and sharp, unseen objects by allowing you to drain water and stop water from draining out of a sink without reaching your arm into the water!;     手柄右转，即去水；左转，即关闭；   Simply twist the handle's heat-resistant plastic grip to the right to open the drain, or to the left to close the drain;     配有溢流管；   An overflow assembly prevents unsanitary and dangerous overflow even if the drain is closed ;     落水开孔尺寸：3.5＂，溢流管尺寸：1.5＂ or 2；   3 1/2 Sink Opening,2" NPT Male Outlet,1.5"NPT adapater & overflow tube;;     全铜排污阀+铜管+溢水口弯头；   Twist Waste Valve with Overflow Assembly;
