法国Roller Grill 批萨炉详细介绍（附图） PZ330 PZ660 Pizza Oven from France

乐乔单层批萨烤箱...法国 Roller Grill
Professional Roller Grill Pizza Ovens

Fours à pizza

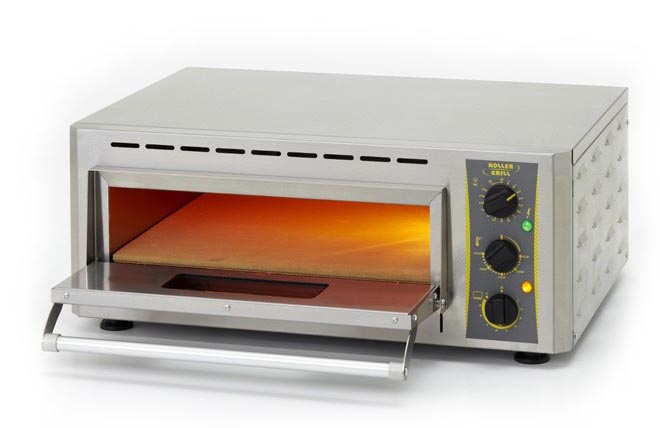

法国乐乔批萨炉...PZ430S
PZ430S...Roller Grill Pizza Oven

技术参数 Technical Data

名称 Descripition	型号 Model	品牌 Brand	产地 Origin	功率 Power	温度范围 Temperature	内腔尺寸 Inner Dim.	规格(WDH) Dimension (mm)	重量 Weight
单层批萨炉 Pizza Oven	PZ 430S	Roller Grill	法国 France	220 V,3000 W	50°C~350°C	430430110 H	670580270 H	30 Kg

性能特点 Features

	高品质不锈钢炉身，耐高温玻璃门观测窗,内置烤石板，使饼底更松脆；

	S/S Body,and fistone for fast and crispy cooking of pizza;


	上下发热管（耐1050°C高温的石英管），独立控制；

	Independent regulation of each set of quartz tubes(1050°C);


	时间控制旋钮0-15分钟;温度调节旋钮50-350°C ;另外还配置功率调节旋钮；

	15’ bell timer,thermostat 50-350°C, pilot lights ;A regulator for the fire stone;

	14英寸（直径约40cm ）的新鲜批萨，3.5分钟锔成薄饼； 14英寸（直径约40cm ）的冷冻批萨，约4.0分钟锔成薄饼；

	A 40 cm (14’) dia. fresh pizza in 3’30 or deep-frozen pizza in 4’;


	可制作的品种：批萨、乳蛋饼、烤宽面条、馅饼、烤奶酪面包等；

	Cooking of pizza, quiche, lasagne, pies (pizza oven function), gratinées, flambées, cheese sandwiches (salamander function), bread, tarts, focaccia, pastries (bread oven function);

工作原理 The way of function

机器内有8组石英加热管(PZ430S);底部铺有一块烤石,可快速加热批萨;
.Cooking is made thanks to 8 quartz tube heating elements (PZ 430 S/PZ 430 2D) or 16 quartz tube heating elements (PZ 430 D) which produce a maximum infrared radia-tion. A fire stone ensures an excellent spread of heat for an homogeneous cooking of the dough;

拨动时控旋钮,设置时间,此时绿色指示灯亮,机器通电;
.To turn on the oven, select the heating time by turning the timer control knob , the green pilot light ignites;

调节温度旋钮,设置所需的温度,此时橙色指示灯亮,顶部石英管加热;
...调节功率旋钮,设置所需功率,此时底部石英管加热;
. Turn on the thermostat control knob on the wished position, the or-ange pilot light ignites. The upper quartz tubes are running. Turn on the regulation knob on the wished power. The lower quartz tubes ig-nite;

使用说明书 Operation Manual
	PZ430S 批萨炉操作使用说明书- 英文版下载　^English Version

乐乔双层批萨烤箱...法国 Roller Grill
Professional Roller Grill Pizza Ovens

Fours à pizza

法国乐乔双层批萨炉...PZ430D
PZ430D...Roller Grill Pizza Oven

技术参数 Technical Data

名称 Descripition	型号 Model	品牌 Brand	产地 Origin	功率 Power	温度范围 Temperature	内腔尺寸 Inner Dim.	规格(WDH) Dimension (mm)	重量 Weight
双层批萨炉 Pizza Oven	PZ 430D	Roller Grill	法国 France	220 V,2*3 KW	50°C~350°C	每层 430430110 H	670580500 H	53 Kg

性能特点 Features

	高品质不锈钢炉身，耐高温玻璃门观测窗,内置烤石板，使饼底更松脆；

	S/S Body,and fistone for fast and crispy cooking of pizza;


	上下发热管（耐1050°C高温的石英管），独立控制；

	Independent regulation of each set of quartz tubes(1050°C);


	时间控制旋钮0-15分钟;温度调节旋钮50-350°C ;另外还配置功率调节旋钮；

	15’ bell timer,thermostat 50-350°C, pilot lights ;A regulator for the fire stone;

	14英寸（直径约40cm ）的新鲜批萨，3.5分钟锔成薄饼； 14英寸（直径约40cm ）的冷冻批萨，约4.0分钟锔成薄饼；

	A 40 cm (14’) dia. fresh pizza in 3’30 or deep-frozen pizza in 4’;


	可制作的品种：批萨、乳蛋饼、烤宽面条、馅饼、烤奶酪面包等；

	Cooking of pizza, quiche, lasagne, pies (pizza oven function), gratinées, flambées, cheese sandwiches (salamander function), bread, tarts, focaccia, pastries (bread oven function);

工作原理 The way of function

机器内有2*8组石英加热管(PZ430D);底部铺有一块烤石,可快速加热批萨;
.Cooking is made thanks to 8 quartz tube heating elements (PZ 430 S/PZ 430 2D) or 16 quartz tube heating elements (PZ 430 D) which produce a maximum infrared radia-tion. A fire stone ensures an excellent spread of heat for an homogeneous cooking of the dough;

拨动时控旋钮,设置时间,此时绿色指示灯亮,机器通电;
.To turn on the oven, select the heating time by turning the timer control knob , the green pilot light ignites;

使用说明书 Operation Manual
	PZ430D 批萨炉操作使用说明书- 英文版下载　^English Version

乐乔大号单层批萨烤箱...法国 Roller Grill
Professional Roller Grill Extra-large Pizza Ovens

Fours à pizza

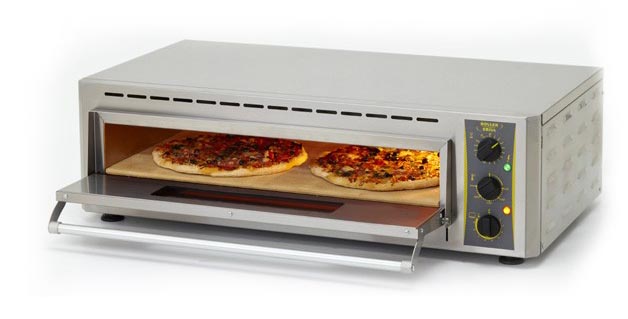

法国乐乔双层批萨炉...PZ4302D
PZ4302D...Roller Grill Pizza Oven

技术参数 Technical Data

名称 Descripition	型号 Model	品牌 Brand	产地 Origin	功率 Power	温度范围 Temperature	内腔尺寸 Inner Dim.	规格(WDH) Dimension (mm)	重量 Weight
大单层批萨炉 Pizza Oven	PZ 4302D	Roller Grill	法国 France	380 V,5 KW	50°C~350°C	每层 655430110 H	895580270 H	58 Kg

性能特点 Features

	高品质不锈钢炉身，耐高温玻璃门观测窗,内置烤石板，使饼底更松脆；

	S/S Body,and fistone for fast and crispy cooking of pizza;


	上下发热管（耐1050°C高温的石英管），独立控制；

	Independent regulation of each set of quartz tubes(1050°C);


	时间控制旋钮0-15分钟;温度调节旋钮50-350°C ;另外还配置功率调节旋钮；

	15’ bell timer,thermostat 50-350°C, pilot lights ;A regulator for the fire stone;

	14英寸（直径约40cm ）的新鲜批萨，3.5分钟锔成薄饼； 14英寸（直径约40cm ）的冷冻批萨，约4.0分钟锔成薄饼；

	A 40 cm (14’) dia. fresh pizza in 3’30 or deep-frozen pizza in 4’;


	可制作的品种：批萨、乳蛋饼、烤宽面条、馅饼、烤奶酪面包等；

	Cooking of pizza, quiche, lasagne, pies (pizza oven function), gratinées, flambées, cheese sandwiches (salamander function), bread, tarts, focaccia, pastries (bread oven function);

工作原理 The way of function

机器内有8组石英加热管(PZ430D);底部铺有一块烤石,可快速加热批萨;
.Cooking is made thanks to 8 quartz tube heating elements (PZ 430 S/PZ 430 2D) or 16 quartz tube heating elements (PZ 430 D) which produce a maximum infrared radia-tion. A fire stone ensures an excellent spread of heat for an homogeneous cooking of the dough;

拨动时控旋钮,设置时间,此时绿色指示灯亮,机器通电;
.To turn on the oven, select the heating time by turning the timer control knob , the green pilot light ignites;

使用说明书 Operation Manual
	PZ4302D 批萨炉操作使用说明书- 英文版下载　^English Version

专业性单门批萨炉...法国 Roller Grill
Professional Roller Grill Pizza Ovens

Fours à pizza

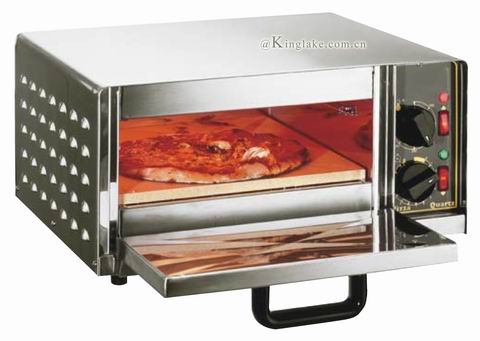

批萨炉...PZ 330
PZ 330...Pizza Oven

技术参数 Technical Data

名称 Descripition	型号 Model	品牌 Brand	产地 Origin	功率 Power	规格(WDH) Dimension (mm)	重量 Weight
批萨炉 Pizza Oven	PZ 330	Roller Grill	法国 France	220 V,2000 W	480410240 H	28 Kg

专业性两门批萨炉...法国 Roller Grill
Professional Roller Grill Pizza Ovens

Fours à pizza

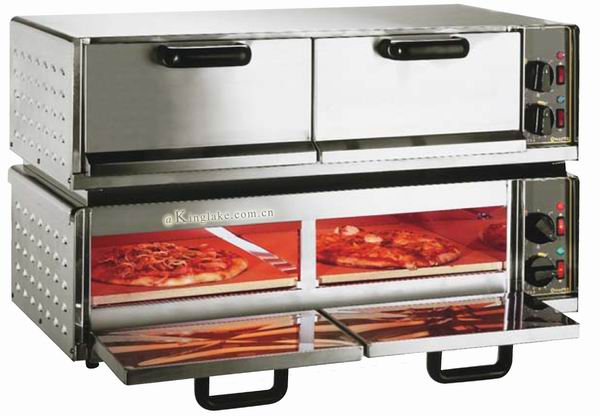

两门批萨炉...PZ 660
PZ 660...Two-door Pizza Oven

技术参数 Technical Data

名称 Descripition	型号 Model	品牌 Brand	产地 Origin	功率 Power	规格(WDH) Dimension (mm)	重量 Weight
两门批萨炉 Two-door Pizza Oven	PZ 660	Roller Grill	法国 France	220 V,3000 W	840465240 H	31 Kg

性能特点 Features

■	高品质不锈钢炉身，内置石板，使饼底更松脆；

	S/S Body,and fistone for fast and crispy cooking of pizza;


■	上下发热管（耐1050°C高温的石英管），独立控制；

	Independent regulation of each set of quartz tubes(1050°C);


■	带时间控制旋钮，0-350°C 的温控以及指示灯；

	15’ bell timer,thermostat 0-350°C, pilot lights ;

■	12英寸（直径约33cm ）的新鲜批萨，3.5分钟锔成薄饼；若为冷冻的批萨，约4.5分钟锔成薄饼；

	A 33 cm (12’) dia. fresh pizza in 3’30 or deep-frozen pizza in 4’30;


■	可制作的品种：批萨、乳蛋饼、烤宽面条、馅饼、烤奶酪面包等；

	Cooking of pizza, quiche, lasagne, pies (pizza oven function), gratinées, flambées, cheese sandwiches (salamander function), bread, tarts, focaccia, pastries (bread oven function);

操作指南 How to Use your pizza oven

将时控开关定时为10分钟,预热一下批萨炉，此时电源指示灯亮;
.Set a 10mn preheating time thanks to the timer,the ON/OFF pilot light gones on;

打开上部发火开关和下部发火开关;
.Switch on the 2 switches regulating the cooking areas;

调节温控旋钮，设置烘烤温度，红色指示灯亮;
. Set the cooking temperature thanks to thermostat,the temperature pilot light goes on till the temperature rising;

预热完毕，根据所需烘烤的不同食物，设置时间（时控旋钮），分别打开上、下发火开关;
. When the preheating time is over,set the cooking time thanks to the timer and switch on the cooking switches acoording to the results you wish;

…	上部单独发火：可作为面火炉使用； Upper heating area:cooking like a salamander or cheese-maller to toast,grill

…	下部单独发火：可烘制酥皮糕点、苹果派； Lower heating area:cooking pastries,pies

…	上下部同时发火：可烘制新鲜或冷冻的批萨，洋葱馅饼等； Both heating area:cooking fresh or deep-frozen pizzas,onions pies
