Tornado 2美国Turbochef商用急速微波烤箱详细介绍（附图） TurboChef Tornado 2 High Speed Commercial Convection Microwave Oven

Tornado 2 高速微波热风烤箱...美国 Turbochef

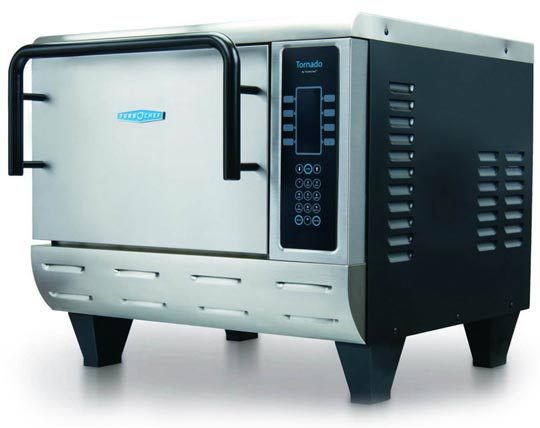

TurboChef Tornado 2 High Speed Commercial Convection Microwave Oven

TurboChef 快速微波烤箱
Convection Microwave Oven

型号Model:Tornado 2

...	电热/微波加热双重烧烤,烘烤速度比常规烤箱快12倍；
	Toast, brown, and crisp food up to twelve times faster than traditional cooking methods;


...	高速可变速风扇，形成高压热风，快速烤制食品；
	Variable-speed High h recirculating impingement airflow system ;

...	内置油烟净化器,去除油烟、油脂以及气味；
	Internal catalytic filtration to limit smoke,grease, and odor emissions;

技术参数 Technical Data

名称 Descripition	型号 Model	容量 Cavity Space	最大输入功率 Max.Input	微波功率 Microwave Power	内膛尺寸(WDH) Inside Dimension (mm)	外形尺寸(WDH) Outside Dimension (mm)	重量 Weight
高速微波烤箱 Combination Oven	Tornado 2	30 L	400V,10.5KW	3.5KW	394373203 H	660723483/584 H	86Kg/145Kg

性能特点 Features

	电热/微波加热双重烧烤,烘烤速度比常规烤箱快12倍；

	Toast, brown, and crisp food up to twelve times faster than traditional cooking methods;


	内置催化式油烟净化器,去除油烟、油脂以及气味；

	Internal catalytic filtration to limit smoke,grease, and odor emissions;


	高速可变速风扇，形成高压热风，快速烤制食品；

	Variable-speed High h recirculating impingement airflow system .

	智能菜单,可储存128个菜单；

	Smart menu system capable of storing up to 128 recipes.


	内置自我诊断系统,智能监控机器的运行；

	Built-in self-diagnostics for monitoring oven components and performance;

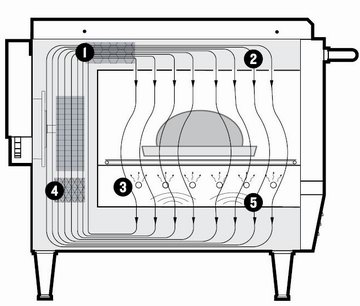

工作原理 How it works

	1.上部加热管加热；

	The internal heaters transfer energy to the recirculating airflow;


	2.高温热风以100公里/小时的速度向下方吹,在食品四周回旋烘烤；

	The recirculating airflow circulates at speeds up to 60 mph (100 km/h) down and around the food item;


	3.底部加热管同时发热；

	Simultaneously, a bottom radiant heater provides heat transfer to the bottom of the food product .

	4.回旋热风通过油烟净化器,使油烟、油脂和气味得到净化；

	The recirculating air passes through a Catalytic Converter where excess grease and odors are combusted and removed;


	5.上下加热管发热的同时，底部微波功能对食物内部进行加热；

	working in parallel with the recirculating airflow and bottom ir element, the microwave system couples microwave energy from the bottom of the cavity evenly into the food items;

Tornado 2 回风快速烤箱缔造高品质的烹饪效果,速度快15倍

Tornado 2 can produce the highest quality foods faster than conventional ovens


8"新鲜批萨,烤制时间:2分45秒 8" Pizza-Fresh Dough 2 minutes 45 seconds	8"冷冻预烤批萨,烤制时间:1分25秒 8" Pizza-Parbaked, Refrigerated 1 minute 25 seconds	8份冷冻鸡翅,烤制时间:2分10秒 Chicken Wings-8-count, Frozen 2 minutes 10 seconds


6"三明治,烤制时间:35秒 6" Sub Sandwich 35 seconds	炸薯条,烤制时间:1分45秒 French Fries 1 minute 45 seconds	6盎司三文鱼,烤制时间:1分35秒 6 oz Salmon 1 minute 35 seconds

应用范围 Application

	可烘烤各种食物，如批萨、海鲜、百吉饼以及风味特色小吃； Designed to cook a multitude of products including pizza,seafood,bagels,ethnic foods and more;


	特别适合于空间狭小的场所，如外卖的小店、亭子； Ideally suited for Kiosk and express-style locations where smaller ovens are required;


	使用场所：批萨外卖店、快餐连锁、咖啡吧、宾馆酒店等； Avalible for fast food chain,express-style location,coffee bar and hotel;

操作说明 Operation Manual
	Tornado 2 快速烹饪烤箱操作使用说明书-^英文版下载 ^Tornado 2 English Operation Manual
