专业酒吧.洗杯机...西班牙 Fagor 清洁设备
Commercial Glass washers...Fagor Spain

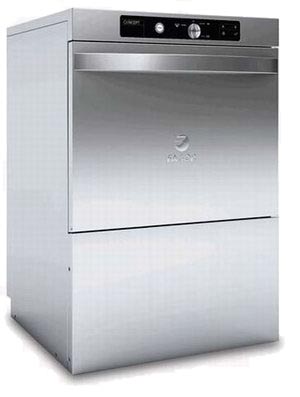

CO-400(原AD-21) 台下式.洗杯机 Fagor Glass Wasers
...
每小时可清洗360碟(30筐/小时);
  Output: 360 dishes every hour(30 baskets/hour);

...
使用于:酒吧、咖啡吧等地方紧凑的场所;
  Suitalbe for bar ,coffee bar ,small restaurant etc;


技术参数 Technical Data


型号
Model
产地
Origin
产量
Output
水缸容量
Tank Cap.
水缸加热功率
Washing Power
杯筐尺寸
Basket Dim(mm)
耗水量(每次)
Water Consumption(cycle)
CO-400
Spain 西班牙

30 筐/小时
360个 盘子dishes

13 L
2 KW
400*400*140H
2.0 L
  ' ;&,淝"鴙IE' ;&,淝" align="center">水泵功率
Pump Power
淋洗功率
Rinsing Power
洗涤时间
Cycle time
总功率
Total Power
外形尺寸(W*D*H)
Dimension(mm)
2.8 KW
120 秒
120 sec

0.29 KW

230V,3.06 KW
470*520*720 H


性能特点 Features
内置式喷淋加热器,并带有干燥剂分配器;
  Built-in rinse water boiler. Automatic rinse dispenser;

温度控制: 洗涤60℃,喷淋90℃;
  Thermostatically adjusted: wash 60 ℃, and rinse 90 ℃;

安全保障:过热保护,门开启安全开关;
  Safety thermostat,Safety switch for door opening;

附带1个400*400 mm杯筐和1个刀叉盒;
  Equipped with 2 baskets and 1 cutlery container;

在清洗循环结束时候,可选择冷水喷淋;
  Optional cold rinse at the end of the cycle;

洗涤缸内部的圆角处理避免了污垢藏匿,双重过滤,能够让水长时间保持洁净;
  Wash tanks with rounded edges to prevent dirt from accumulating;double filter, easy remove to keep water clean for longer ;









新过滤系统:
过滤挡板的高度增加了30%,避免食物残渣进入排水管和抽水泵;
  喷淋孔 大图;
Filtering system:
The height of the filter has been increased by 30% in order to avoid any food particles
getting through to the drain or the pump;

Detailed view of the different rinsing jets.



随机附送2个杯筐和1个刀叉盒
  上、下清洗臂,容易去除污垢,便于清洗;
All glass washers are fitted withat least two square baskets anda cutlery holder;

All models are fitted with two washing arms, one on top and at the bottom..



前面板很容易拆卸,便于保养维护
  清洗缸内的加热管;
Easy to remove front panel;

The element in the tank (as well as the one in the drum) directly heats the water in side.


操作说明 Operation Manual
  CO-400(原AD-21)洗杯机 操作使用说明书-^英文版下载 ^English Operation Manual


适用场所 Locations

  ..专为酒吧设计,节省空间,常用于酒吧、咖啡吧、小型西餐馆等场所;
  ..Suitalbe for bar ,coffee bar ,small restaurant etc;



相关设备 Relative
