首页>清洁设备专栏>揭盖式洗碗机   本页目录  DV-80T



德国 迈科 揭盖式(罩式)洗碗机 ···
Germany Meiko Hood Type Dishwashers



型号Model:H500(原型号DV 80T)










高品质的洗涤效果、最舒适的操作过程,满足
各类盘碟以及玻璃杯的高标准洗涤要求



功能特性 Features

双层不锈钢罩式结构:降低噪音,降低能源消耗;
Double wall construction of machine body and hood:acts as noise dampers,reduces outer machine surface temperature to 35°c and saves energy

后敞开式罩壳:蒸汽后溢,增强了操作的舒适感;
Open back of the machine hood:lets steamy vapor exit through the back,not the front of the machine,for more comfort;

倾斜式内盖:防止残余的 洗涤液 滴落在干净的盘碟上;
Sloping inner machine hood celling:prevents suds from dripping onto clean dishes after final rinsing;

超短待机加热时间:提高运行效率,源于独特的设计理念;
Short heating time improves the running efficiency fo the machine,which roots in the unique concept of design;

程序启动,只需轻松按下外罩扶手
Program starts by simply pressing down the hood handle;

高效旋转式 洗涤臂和漂洗臂 设计:充分利用了水泵压力并降低洗涤用水量(3升/篮);
Super-efficient rotating wash and final rinse arm design:allows for reduced pump pressure and lower water consumption (3L/Basket)

自清洗功能:清洗极方便,最大程度保持机器的清洁和卫生;
Self-cleaning programme for maximun cleaning comfort and hygiene;

ECO 过滤器 与 洗涤槽筛网的有机结合:优化过滤效果,并使水泵获得最有效的保护;
ECO-Filter and wash tank cover sieve: optimum filtering of suds,best washing pump protection;

深拉式圆弧角洗涤水槽:无焊接、无腐蚀、易操作、易清洗;
Deep-drawn wash tank with rounded-corners: easily accessible,easy to clean.No corrosion of welding spots;

防回流装置,增压管外置于洗涤箱:易安装,更卫生;
Reflux preventing hose,final rinse hose and ascending pipe are placed outside the wash chamber: facilitates cleaning of the interior of the machine,more hygienic;

3档洗涤循环时间选择:60/90/210 秒,适应于不同的洗涤要求;
Choice of 3 washing cycle times: ensures perfect results,regardless of the soil level of the dishes;

轻触式感应面板:外观典雅,易于操作;
Fully electronic control with sensor touch key pad: more elegang and easy to operate;

440毫米的净通高度:洗涤 大碗碟 更方便;
440mm clear passing height through the machine: most convenient for large washware;

轻触式感应面板 Sensor Touch Keypad

.数字温度显示保障了卫生安全性;
.该操作面板 面滑光洁,易于清洁,无传统的机械式按钮;
.操作指示简单明了;

3档洗涤循环时间选择适应于不同的洗涤要求

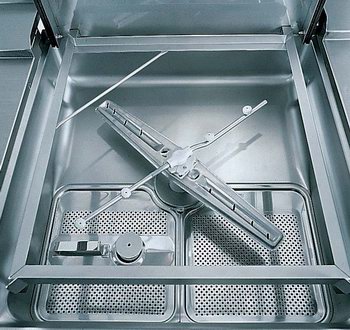

深拉式 圆弧角洗涤水槽:
...
无焊接、无腐蚀、易操作、易清洗


旋转式洗涤臂和漂洗臂
...
确保一流的洗涤效果

环保式过滤系统 与 自我清洁功能
...
最大程度保持机器的清洁和卫生

双层壁式结构
...
有效减少了噪音与热量的散失



技术参数 Technical Data

型号Model:
Upster H500(原型号DV 80T)

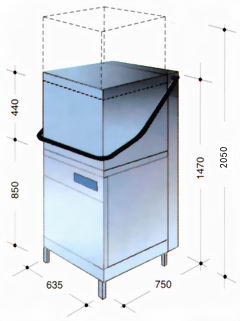

总体尺寸    Dimensions (W x D x H)
635 x 750 x 1470 mm
洗涤篮规格   Basket dimensions
500 x 500 mm
洗涤能力    Basket per hour
60 Baskets/h
入口高度    Entry Height
440 mm .
水槽容量    Tank volume
22 L.
漂洗用水量   Final rinse
3L /basket
总功率     Total connected load
14 KW


标准配置    Standard features
.380V,50赫兹
.60/90/210秒洗涤循环
.催干剂分配器
.
LED 温度显示
.380V,50Hz
.Pre-set 60*90*210secs
.Rinse aid dosing
.
LED Temp indicators

选装件 Optional accessories
.不锈钢水槽、工作台、洗涤篮 Stainless steel table.sink,plastic baskets;

电力安装 Electrical Installation
.所有的电力安装连接在工厂已经完成,用户只需将3相/380伏/50赫兹电源与本机连接即可。控制线路符合VED标准;
The machine is delivered ready for electrical connection and operation,the control corresponds with VDE regulations

水管连接 Water Installation
.机器可以直接与一般供水系统连接,无需特殊的中间安全装置。进水压力范围:2.5巴-5巴。安装规范参照DIN1988标准。
The machine can be connected directly to the fresh water supply without the need for intermediate safety fittings.Water pressure should be 2.5 and 5 bar.The installation regulations DIN1988 are to be observed.
