首页>快餐设备.专用>Middleby Marshall 履带式批萨烤箱
 本页目录     PS520系列  PS536系列  PS555系列



台式 输送带式 批萨...美国.美得彼Marshall
Middleby Marshall Professional Pizza Ovens
Fours à pizza

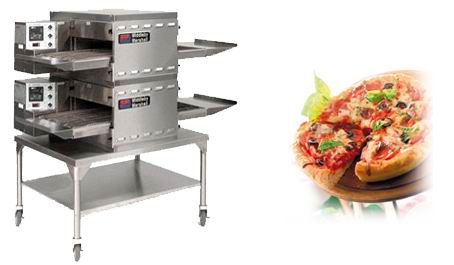

台式单层.电热批萨炉
Model:PS520-1
Electric Countertop Conveyor Oven..Single layer


工作原理 Principle

三种加热方式:热传导、红外线以及热风循环;
Heat moves three different paths:conduction;Radiation;and Convection;

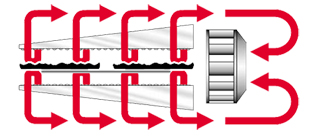

专利技术:内置鼓风装置,通过两侧的鼓风通道,将高压热空气吹入,使得食品加热非常快速、均匀
The fan-style blower draws air into the oven plenum whereit is heated. The blower then pushes the hot air through theair fingers into the baking chamber.


性能特点  Features

专利技术:上下热风通道,将高压热空气持续吹入,食品加热非常快速、均匀;
Patented —Jet Sweep“ impingement process that delivers constant heat to the chamber;


烘箱内腔长:20“
20“(509mm) long cooking chamber;


履带宽18”,长42“,可正向、反向运转
18“(457 mm)-wide, 42“(1066mm) long conveyor belt;Reversible conveyor direction


节省空间批萨烤箱可以叠加
Stackable up to three units high;


微处理器:控制烘制的时间以及履带的传送速度;
Microprocessor-controlled bake time/conveyor speed;


前面板、侧板以及内板均为不锈钢机制作;
Stainless steel front, sides, top and interior;


节省能源:热气回收, 大限度防止热量流失;
Middleby ovens provide very efficient heat transfer to product. Energy is conserved as air is recycled from heater to product, with minimum flue or vent loss;









技术参数 Technical Data--- 电热 输送带式 比萨烤炉 Electric Conveyor Pizza Oven
名称
Descripition
型号
Model
产地
Origin
功率
Power
重量
Weight
规格(mm)
Dimension
台式单层.电热.输送带式 比萨烤炉
Electric Countertop Conveyor Pizza Oven
PS520-1
美国 USA
230V,8.3KW,单相
380V,8.3KW,3相
147 KG
1524×966×536 H

加热区域
Heating zone
履带长度
Belt length
履带宽度
Belt Width
烘烤时间
Bake Time Range
最大温度
Max.Operating Temp.
备注
Memo
20" (509 mm)
42"(1066 mm)
18"(457 mm)
1分钟~10分钟
288°C
可调脚:102~140mm

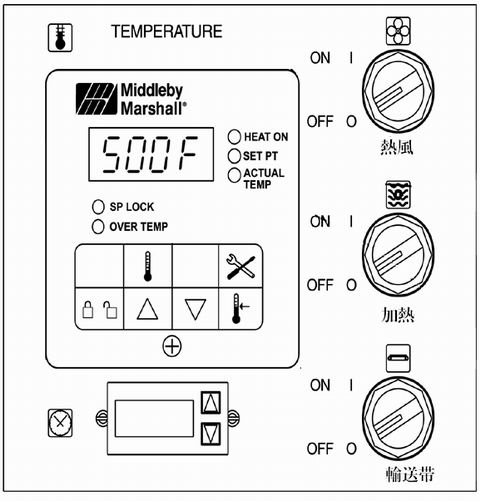

控制面板  Control Box




应用范围  Application

可烘烤各种食物,如批萨、海鲜、百吉饼以及风味特色小吃;
Designed to cook a multitude of products including pizza,seafood,bagels,ethnic foods and more;


特别适合于空间狭小的场所,如外卖的小店、亭子
Ideally suited for Kiosk and express-style locations where smaller ovens are required;


使用场所:批萨外卖店、快餐连锁、咖啡吧、宾馆酒店等
Avalible for fast food chain,express-style location,coffee bar and hotel;


操作说明 Operation Manual
  PS520 批萨炉系列 操作使用说明书-^英文版下载 ^PS520 English Operation Manual




立式 输送带式 批萨...美国.美得彼Marshall
Middleby Marshall Professional Pizza Ovens
Fours à pizza

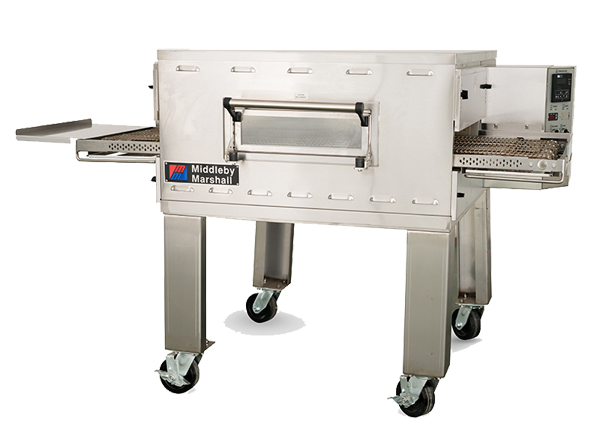

单层.电热批萨炉
Model:PS536-1
Electrically Heated Conveyor Oven..Single layer

双层.叠式批萨炉
Model:PS536-2
Electrically Heated Conveyor Oven..Double layer


工作原理 Principle

三种加热方式:热传导、红外线以及热风循环;
Heat moves three different paths:conduction;Radiation;and Convection;


专利技术:内置鼓风装置,通过两侧的鼓风通道,将高压热空气吹入,使得食品加热非常快速、均匀
The fan-style blower draws air into the oven plenum whereit is heated. The blower then pushes the hot air through theair fingers into the baking chamber.



性能特点  Features

专利技术:上下热风通道,将高压热空气持续吹入,食品加热非常快速、均匀;
Patented —Jet Sweep“ impingement process that delivers constant heat to the chamber;


烘箱内腔长:36“
36“(914mm) long cooking chamber;


履带宽20”,长60“,可正向、反向运转
20“(508mm)-wide, 60“(1524mm) long conveyor belt;Reversible conveyor direction


节省空间批萨烤箱可以叠加
Stackable up to three units high;


微处理器:控制烘制的时间以及履带的传送速度;
Microprocessor-controlled bake time/conveyor speed;


前面板、侧板以及内板均为不锈钢机制作;
Stainless steel front, sides, top and interior;


节省能源:热气回收, 大限度防止热量流失;
Middleby ovens provide very efficient heat transfer to product. Energy is conserved as air is recycled from heater to product, with minimum flue or vent loss;









技术参数 Technical Data--- 电热 输送带式 比萨烤炉 Electric Conveyor Pizza Oven
名称
Descripition
型号
Model
产地
Origin
功率
Power
重量
Weight
规格(mm)
Dimension
电热.单层输送带式 比萨烤炉
Electric Conveyor Pizza Oven
PS536-1
美国 USA
380V,16KW
299 KG
1524×1010×1105 H

加热区域
Heating zone
履带长度
Belt length
履带宽度
Belt Width
烘烤时间
Bake Time Range
最大温度
Max.Operating Temp.
备注
Memo
36" (914 mm)
60"(1524 mm)
20"(508 mm)
2:40~29:50
316 °C
底座支架高:24”

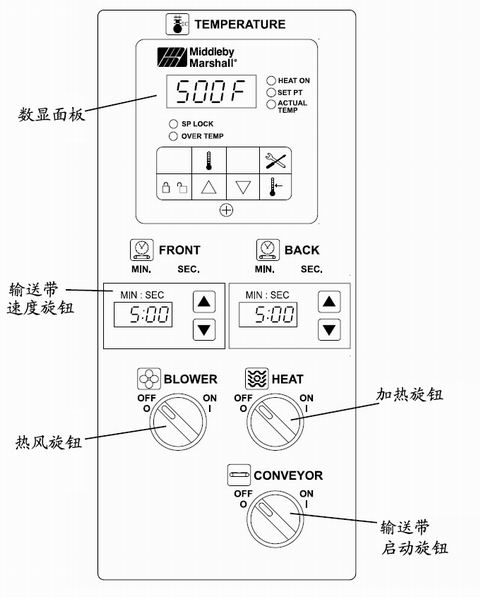

控制面板  Control Box


外形尺寸  Views of Overall

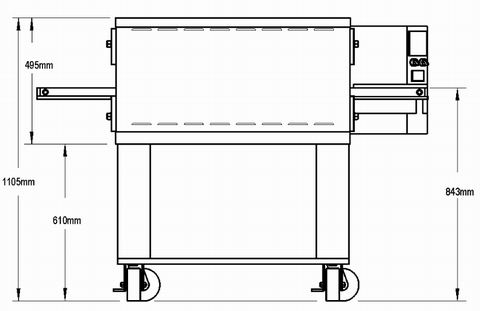

正视图 Front View

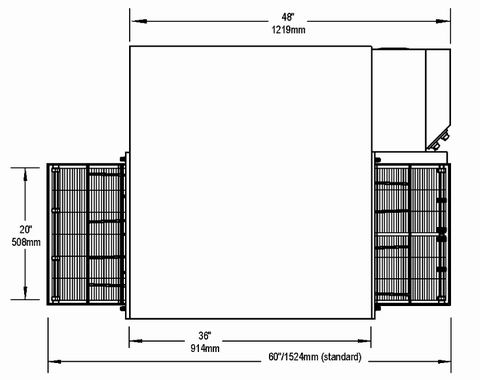

俯视图 PlanForm

侧视图 Side View

应用范围  Application

可烘烤各种食物,如批萨、海鲜、百吉饼以及风味特色小吃;
Designed to cook a multitude of products including pizza,seafood,bagels,ethnic foods and more;


特别适合于空间狭小的场所,如外卖的小店、亭子
Ideally suited for Kiosk and express-style locations where smaller ovens are required;


使用场所:批萨外卖店、快餐连锁、咖啡吧、宾馆酒店等
Avalible for fast food chain,express-style location,coffee bar and hotel;


操作说明 Operation Manual
  PS536 批萨炉系列 操作使用说明书-^英文版下载 ^PS536 English Operation Manual





美得彼 输送带式 批萨...PS555 系列
Middleby Marshall Conveyor Ovens..PS555 Series
Fours à pizza

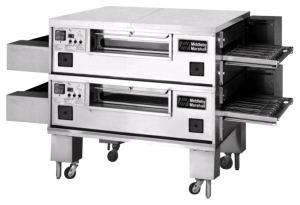

电热双层.叠式批萨炉
Model:PS555-2
Electrically Heated Conveyor Oven..Double layer


技术参数 Technical Data--- 电热 输送带式 比萨烤炉 Electric Conveyor Pizza Oven
名称
Descripition
型号
Model
产地
Origin
功率
Power
重量
Weight
规格(mm)
Dimension
双层.叠式输送带式 比萨烤炉
Electric Conveyor Pizza Oven
PS555-2
美国 USA
380V,32KW
1135 KG
2311×1584×1467 H

加热区域
Heating zone
履带长度
Belt length
履带宽度
Belt Width
烘烤时间
Bake Time Range
最大温度
Max.Operating Temp.
备注
Memo
55"*2 (2794 mm)
91"(2311 mm)
32"(813 mm)
2:40~29:50
288°C
底座支架高:10”


性能特点  Features

专利技术:上下热风通道,将高压热空气持续吹入,食品加热非常快速、均匀;
Patented —Jet Sweep“ impingement process that delivers constant heat to the chamber;


烘箱内腔长:55“
55“(1397mm) long cooking chamber;


履带宽32”,长91“,可正向、反向运转
20“(508mm)-wide, 60“(1524mm) long conveyor belt;Reversible conveyor direction


节省空间批萨烤箱可以叠加
Stackable up to three units high;


微处理器:控制烘制的时间以及履带的传送速度;
Microprocessor-controlled bake time/conveyor speed;


前面板、侧板以及内板均为不锈钢机制作;
Stainless steel front, sides, top and interior;


节省能源:热气回收, 大限度防止热量流失;
Middleby ovens provide very efficient heat transfer to product. Energy is conserved as air is recycled from heater to product, with minimum flue or vent loss;








操作说明 Operation Manual
  PS555 批萨炉系列 操作使用说明书-^英文版下载 ^PS555 English Operation Manual
