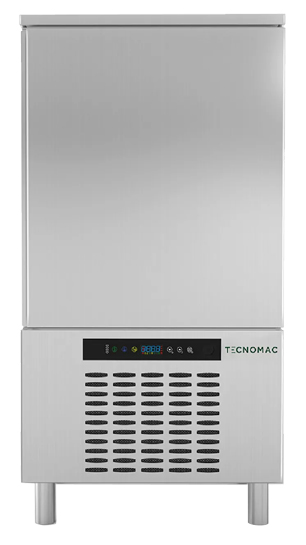

10盘急速冷冻柜/速冻柜...意大利 Tecnomac
Blast Chillers/Shock Freezers...Italy Tecnomac

By Tecnomac











型号 Model:BK10-30A

Tecnomac 急速冷冻柜
Blast Chillers/Shock Freezers


急速冷冻,将食品中心温度降到-18℃,同时保证食材原有的风味;
The blast freezer lowers the temperature at the core of the food to -18°C, a sufficient time to obtain micro-crystallisation, keeping all the qualities of the food whole;


全世界成千上万的厨师已经成功使用Tecnomac速冻柜,提高了工作效率;
Thousands of operators all over the world are already successfully using Tecnomac blast chillers/freezers, thus improving their work, leaving more time for creativity;.


产品描述 Description
.品名
Description
10盘 急速冷冻柜/冷却柜
Blast Chillers/Shock Freezers
.品牌
Brand
Tecnomac.
.型号
Model
BK+10-30

主要参数 Technicals
容量Capcaity(可以容纳以下物品,但随机不包含托盘和冰淇淋箱)
  600*400 的托盘 Trays 10个
GN 1/1的托盘 Trays 10个
5公升的冰淇淋箱 5Lt Ice cream Bins 15个
托盘间的距离 Trays Pitch 68 mm
产量 Yield
  急速冷却:从+90°C到+3°C
32Kg
急速冷冻:从+90°C到-18 °C
22Kg
尺寸重量 Dimension
  外形尺寸(宽*深*高) Size(W*D*H) 800*700*1564 mm
重量 Weight 139 KG
技术特征 Power
  平均功率 Powers 3219W
电压 Voltage 230V/1N/50hz
冷凝机组 Condensing unit 自带冷凝机组Integrated condensing unit
可选功能 Options
  ·设置10mm的托盘距离 Structure with variable pitch 10 mm
·紫外线消毒灯/万向轮 Castors;Sterilising UV;
·HACCP打印功能 HACCP memory;


性能特点 Features
急速冷却 Blast Chilling

急速冷冻 Shock Freezing

...食品中心温度在90分钟内,降到+3°C,快速越过65度~10度的危险范围,
...抑制细菌的繁殖和食品的脱水;
...冷冻过程中,水分子转化为晶体,冷冻速度越快,晶体越小,从而不会破坏食物的结构;,

...保证了食品的色香味,延长了食品的货架期; ...Tecnomac速冻柜,270分钟内,将食品中心温度降到-18℃同时保证食材原有的风味



操作面板功能介绍 About Control Panel

柔和冷却Soft模式---使用于蔬菜、米饭类食物;
.... Soft Blast chilling:Suited for delicate or thin foods such as rice, vegetables, fried foods;

强制冷却Hard 模式---适用于肉类或厚质的食物;
.... Hard Blast chilling:Very effective for dense, greasy and large-sized foods;

急速冷冻---适用于任何的食物冷冻;
.... Shock Freezing:Suited for any food product;


应用范围  Application


餐饮业 Foodservice
面包房 Bakery
糕点店Confectionery
冰淇淋 Ice cream

操作说明 Operation Manual
  Tecnomac BK10-30 速冻柜 产品资料-^英文版下载 ^BK10-30 English Brochure
