首页>食品机械>肉制品类 >切片机

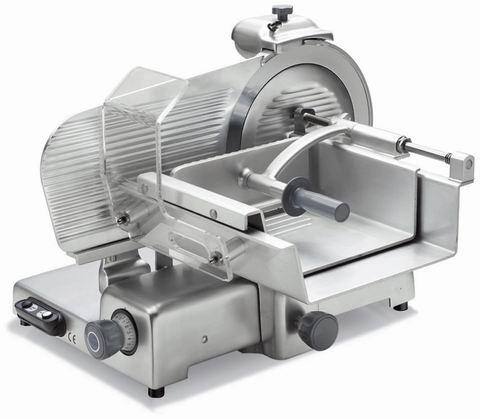

Leonardo莱昂纳多.直刀型切片机...意大利 Sirman 肉食加工设备
Leonardo Vertical Slicer Series...Italy Sirman Meat Processors



意大利舒文 Sirman
型号Model:LEONARDO 300 VCS









莱昂纳多 12”垂直式切片机
LEONARDO 12" Manual Vertical Slicer

...
12”垂直式切片机,特制的承肉台,可切生鲜肉;
  12" upright meat slicer with special hopper for raw meat;

...
密封式开关,整机防水设计;
  Sealed waterproof ON/OFF switch, the machine is completely waterproof;

技术参数 Technical Data

型号
Model
产地
Origin
功率
Power
刀片直径
Knife
Diameter
切削厚度
Slice
Thickness
滑车行程
Carriage travel
料斗尺寸
Hopper(mm)
外形尺寸(W*D*H)
Dimension(mm)
重量(kg)
Gross Weight
LEONARDO
300 VCS
Italy
意大利
230V,
0.30HP,210W
12"(300mm)
22 mm
270 mm
320*215
680*680*450
50.0 Kg

性能特点 Features
12”垂直式切片机,特制的承肉台,可切生鲜肉;
  12" upright meat slicer with special hopper for raw meat;

防水设计:防水式开关,电机和电器部分均有防护罩,可避免用水清洗时引起损坏;
  Sealed waterproof ON/OFF switch and a safety cover is placed under the motor and the electrical components to avoid contact with water and other liquids ;

承肉台侧安装一厚质的保护罩,以确保操作员的安全;
  The hopper features an exclusive heavy duty plastic protection to keep operator’s hand at a safe distance from the blade while operating the slicer ;

机身为电镀铸铝合金;风冷马达;
  Construction:made of durable anodized aluminum alloy ;Ventilated motor;

带切片厚度调节旋钮,可在1~22mm 之间精确切削;
  The dial thickness control cam system allows for an always precise cut;

顶端有磨刀器,可双面研磨;
  Shapener:Built-in, removable, two stone dual action;

容易清洁保养
提供维修工具箱
油脂收集槽板
可拆装的厚度调节挡板
Easy Cleaning
Replacement accessory kit
Grease Guard
Removable deflector and cover
操作说明 Operation Manual
  LEONARDO 12“直刀切片机 操作使用说明书-^英文版下载 ^English Operation Manual
适用范围 Application
  ...适用于下列品种:鲜肉、蔬菜、香肠、火腿、熟肉;
...Suggest for this use:Fresh meat,vegetable,sausages,ham and cooked meat;

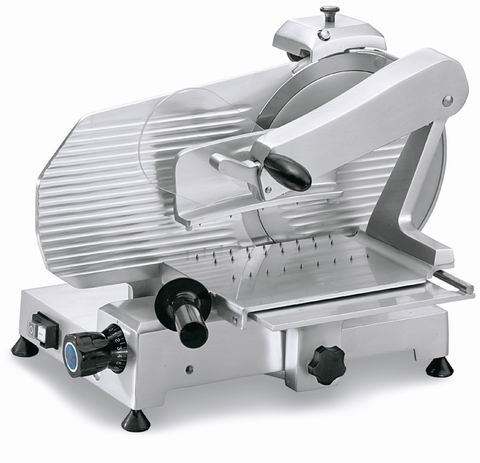

Mirra玛拉.直刀型切片机...意大利 Sirman 肉食加工设备
Mirra Vertical Slicer Series...Italy Sirman Meat Processors



Model:Mirra 300 BS









玛拉 12”直刀切片机
Mirra 12" . Manual Vertical
Slicer


技术参数 Technical Data

型号
Model
产地
Origin
功率
Power
刀片直径
Knife
Diameter
切削厚度
Slice
Thickness
滑车行程
Carriage travel
料斗尺寸
Hopper(mm)
外形尺寸(W*D*H)
Dimension(mm)
重量(kg)
Gross Weight
Mirra
300 BS
Italy
意大利
230V,
0.25HP,160W
12"(300mm)
13 mm
265 mm
260*275
740*540*460
34.0 Kg

性能特点 Features

机身为电镀铸铝合金;风冷马达;
  Construction:made of durable anodized aluminum alloy ;Ventilated motor;

经锻造、淬火处理的厚刀片;
  Chromium plated 100Cr6 forged carbon steel blade;

带切片厚度调节旋钮,可在1~13mm 之间精确切削;
  The dial thickness control cam system allows for an always precise cut;

顶端有磨刀器,可双面研磨;
  Shapener:Built-in, removable, two stone dual action;


特制夹臂的料斗,能更好地切割大的香肠和火腿
Can slice big sausage and ham
with the special arm carriage
操作说明 Operation Manual
  Mirra 12“ 直刀切片机 操作使用说明书-^英文版下载 ^English Operation Manual
适用范围 Application
  ...适用于下列品种:蔬菜、香肠、火腿、熟肉;
...Suggest for this use:vegetable,sausages,ham and cooked meat;

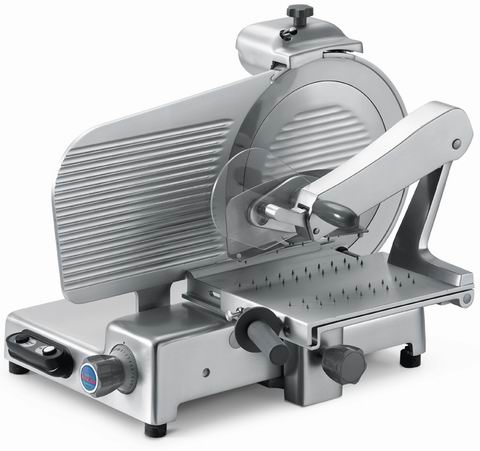

Mantegna蒙特格纳.直刀切片机...意大利 Sirman 肉食加工设备
Mantegna Vertical Slicer Series...Italy Sirman Meat Processors














Model:Mantegna 350 BS
蒙特格纳 14” 直刀型切片机
Mantegna 14" Manual Vertical Slicer

技术参数 Technical Data

型号
Model
产地
Origin
功率
Power
刀片直径
Knife
Diameter
切削厚度
Slice
Thickness
滑车行程
Carriage travel
料斗尺寸
Hopper(mm)
外形尺寸(W*D*H)
Dimension(mm)
重量(kg)
Net Weight
Mantegna
350 BS
Italy
意大利
230V,
0.37HP,275W
14"(350mm)
30 mm
310 mm
300*270
750*600*530
43.0 Kg

性能特点 Features
独创圆角型设计,整机无锐角,也看不见螺钉;
  Innovative rounded design and no sharp edges or visible screws;

经锻造、淬火处理的厚刀片;可以切不规则(凹凸不平的)食品
  Chromium plated 100Cr6 forged carbon steel blade;Can slice uneven foods;

机身为电镀铸铝合金;风冷马达;
  Construction:made of durable anodized aluminum alloy ;Ventilated motor;

摇臂安装一厚质的保护罩,以确保操作员的安全;
  The hopper features an exclusive heavy duty plastic protection to keep operator’s hand at a safe distance from the blade while operating the slicer ;

带切片厚度调节旋钮,可在1~30mm 之间精确切削;
  The dial thickness control cam system allows for an always precise cut;

顶端有磨刀器,可双面研磨;
  Shapener:Built-in, removable, two stone dual action;


刀片和马达间距宽大,便于清洁
Great distance between blade and motor
for easy cleaning
操作说明 Operation Manual
  Mantegna 14" 斜刀切刀机 操作使用说明书-^英文版下载 ^English Operation Manual
适用范围 Application
  ...适用品种:蔬菜、香肠、火腿、熟肉;
...Suggest for this use:vegetable,sausages,ham and cooked meat;
